Powermaster 9004-9 PowerMAX Plus Starter for GM LS, 16:1, Natural
$206.09
A Powermaster PowerMAX Plus gear-reduction starter for Chevy and Pontiac LS and LSX engines and GMC LS trucks, rated for up to 16:1 compression with a 168-tooth flywheel.
- Fits: Chevy & Pontiac LS/LSX and GMC LS truck 4.8L, 5.3L, 6.0L & 6.2L with a 168-tooth flywheel
- Up to 16:1 compression: 3.7:1 gear reduction, 180 lb-ft of cranking torque (per Powermaster)
- Clearance: Clears most headers and works with most oversized kick-out oil pans
- Adjustable mount: Billet aluminum mounting block with 3-position rotation
- Dyno tested: Each starter is individually dyno tested; bolt and shim kit supplied
Amazon price as of Oct 9, 2026, subject to change. Check Amazon for the current price. Checkout is completed on Amazon, not through Planet X Performance.

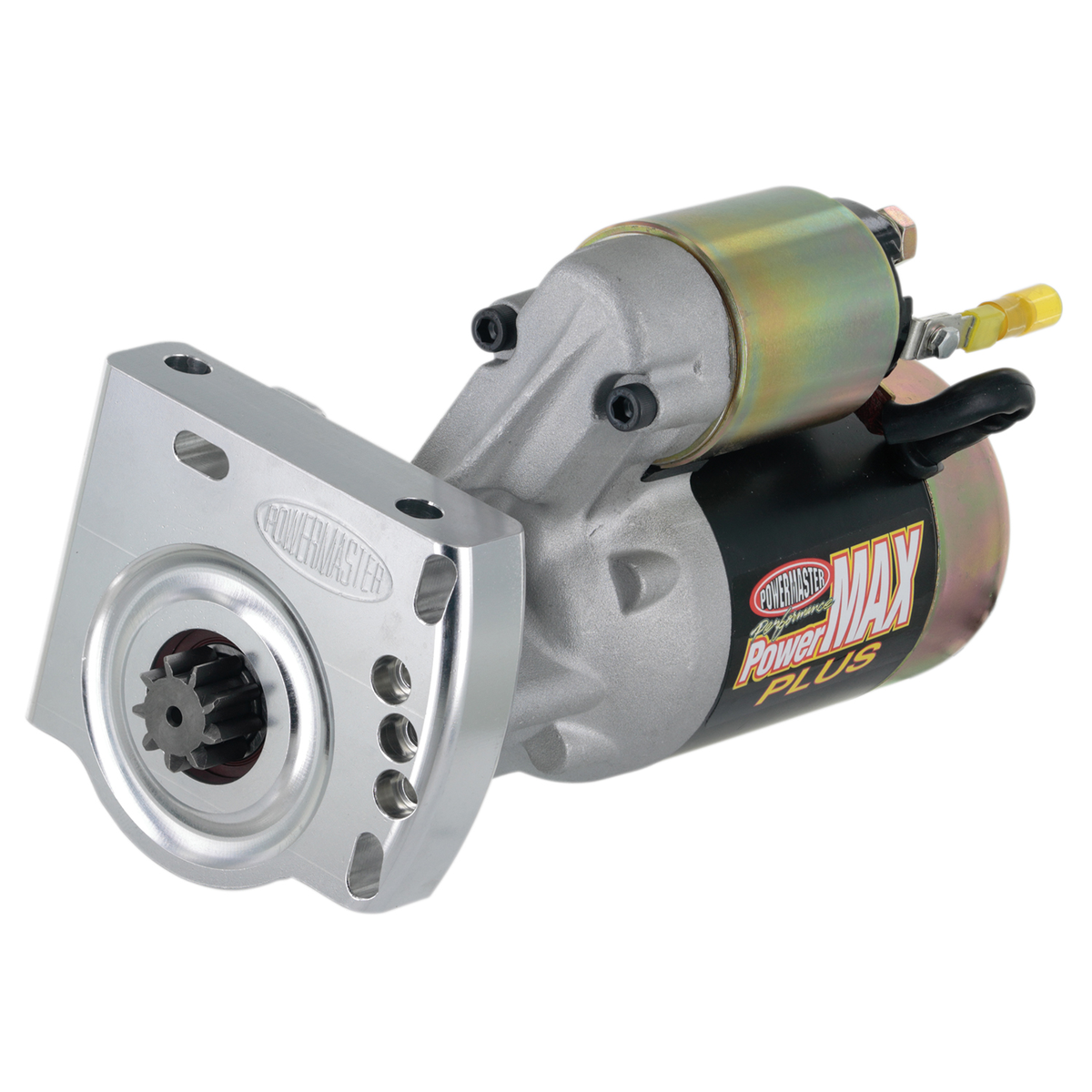

The Powermaster 9004-9 is a PowerMAX Plus starter for LS-based engines, built as a Hitachi PE106-style replacement. A permanent-magnet motor turns a 3.7:1 gear reduction, and Powermaster rates it for engines up to 16:1 compression with 180 lb-ft of cranking torque. It clears most headers and works with most oversized kick-out oil pans, and the billet aluminum mounting block can be set in three positions. This is the natural-finish version.
Key specs
| Brand / part number | Powermaster 9004-9 |
|---|---|
| Series | PowerMAX Plus, natural finish |
| Compression rating | Up to 16:1 |
| Gear reduction | 3.7:1 (per Powermaster) |
| Cranking torque | 180 lb-ft (per Powermaster) |
| Output | 1.4 kW (confirm with the manufacturer or JEGS tech support) |
| Voltage | 12 V |
| Motor | Permanent magnet |
| Mounting | Billet aluminum block, 3-position rotation; solenoid-up only (per Powermaster) |
| Pinion | 9-tooth (per Powermaster) |
| Flywheel / flexplate | 168-tooth |
| Warranty | Manufacturer warranty (confirm with the manufacturer or JEGS tech support) |
Fits
- Engines: Chevy & Pontiac LS and LSX engines; GMC LS truck 4.8L, 5.3L, 6.0L & 6.2L
- Required: 168-tooth flywheel or flexplate
- Compression: 16:1 or lower

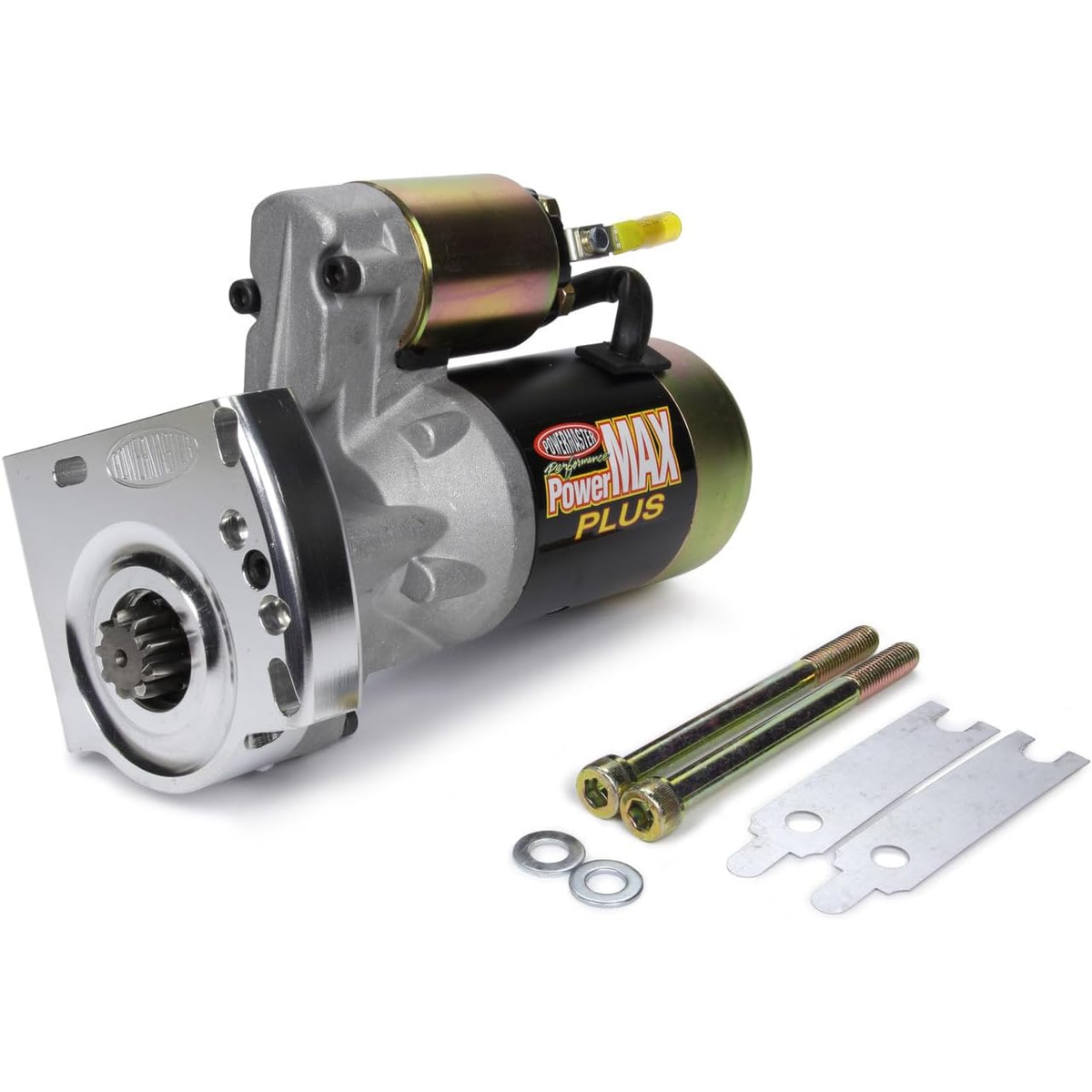

In the box: Starter, bolt and shim kit, and the starter’s dyno test report (per Powermaster).
Check before you buy
- Tooth count: Confirm your flywheel or flexplate has 168 teeth
- Mounting: Solenoid-up mounting only (per Powermaster)

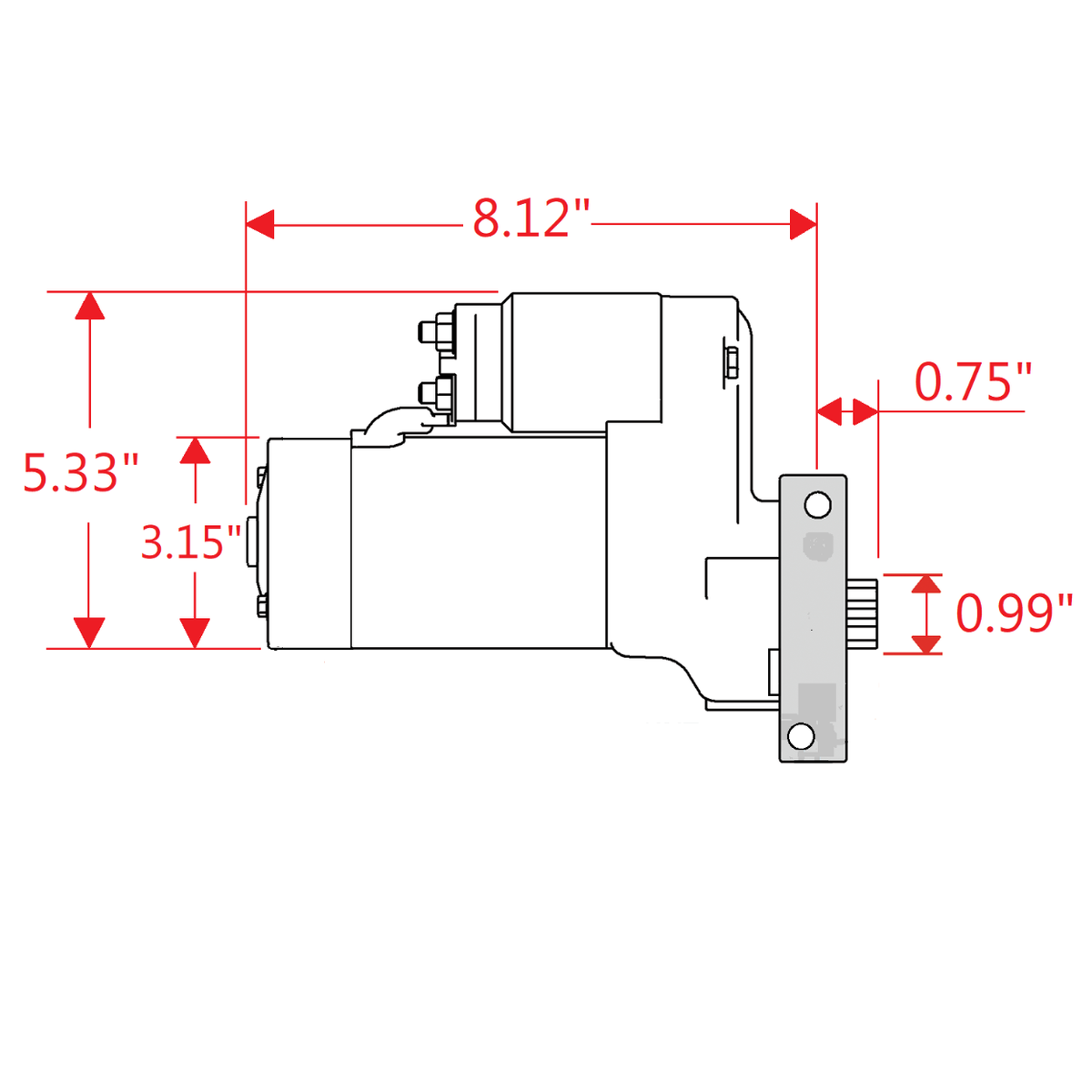

- Clearance: Compare with the dimension drawing in the photos before ordering if headers or the oil pan are tight
Mounting hardware provided by the manufacturer.
Recommended: For replacement mounting bolts, we suggest the ICT Billet LS starter bolt kit (551681) or the ARP stainless LS starter bolt kit (430-3511).
Broken starter ear? If the outboard starter mounting ear on your LS block is cracked or broken, the Trinity Starter Bracket can repair it without machining. The block’s inboard starter bolt hole must still be intact. The Trinity can’t fix a block where the whole starter ear is missing.
